100 No. 75 x 18mm Intumescent Hinge pads (1.0mm)

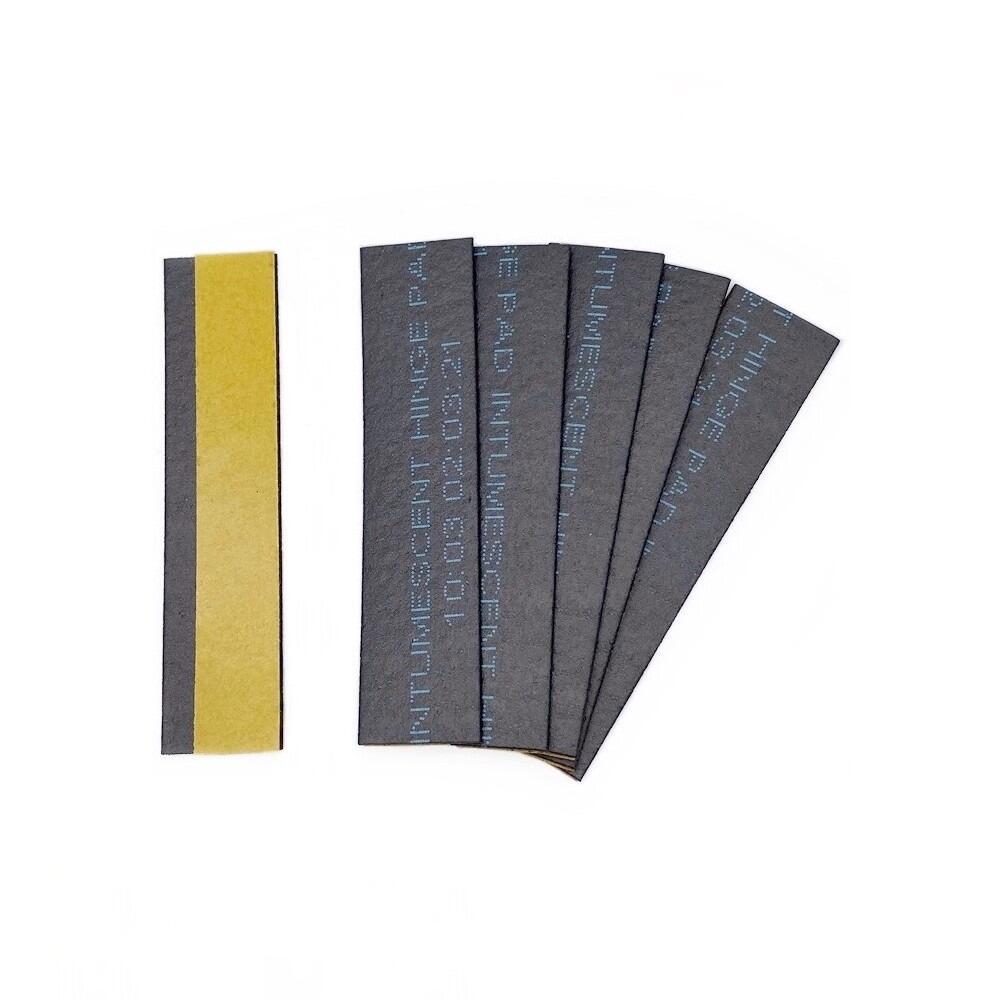

100 pack of 1.0mm 75 x 18mm graphite intumecsent hinge pads

roll over the image to zoom in


100 No. 75 x 18mm Intumescent Hinge pads (1.0mm)


£24.30 (inc. VAT)
£20.25 (ex. VAT)
Earn0
reward points



Product details

4-plus-banner.pngThis pack contains 100 No. 75 x 18mm graphite intumescent hinge pads, available in either plain or self adhesive.

Want to COMPARE our prices for the intumescent pads?

Click here to download our complete price list.


Product Features

  • Fire rated for use with FD30/60 Hinges (see buyers guide below)
  • Available in either plain or self adhesive
  • 1.0mm material (These packs are also available in 0.8mm)

Each Pack Contains

  • 100 No. 75 x 18 x 1.0mm graphite intumescent hinge pads in a choice of plain or self adhesive.

Need FIRE documents? Find downloads at the end of the description below.

Not sure which pad you need? (Skip to bottom of page for our 'Quick Buyers Guide')


Technical Information

Intumescent

Product TypeIntumescent Hinge Pad
MaterialGraphite Based Intumescent (also available in white/MAP)
BrandFlexifire Graphite Intumescent (click here to download the material Data Sheet)
Fire RatingFire Rated to 30mins & 60mins (see 'buyers guide' below for details)
ColourBlack
Product Length75mm
Product Width18mm
Product Thickness1.0mm (also available in 0.8mm)
Hinge StyleSquare corner
Finish OptionsPlain or Self Adhesive
Pack Size(s)100 Pads (also available in packs of 6 or 24 pads)
Internal/External UsageInternal
Manufacturer Guarantee1 Year Guarantee


BUYERS GUIDE

The type of material and thickness your hinge needs depends on the FIRE CERTIFICATE or TEST EVIDENCE of your hinge.

But, as a general rule, you would need 0.8mm or 1.0mm for a 30 minute fire door and 2.0mm for a 60 minute fire door.

Each hinge is also tested with either graphite or MAP (Mono Ammonium Phosphate, white in colour and commonly called by it's brand name 'Interdens') or BOTH.

Buyers TIP: Graphite material (if an option for you) is CHEAPER, nicer to handle and made in the UK.

If you are not sure of the specific requirements of your hinge please ask your fire officer or contact us for advice.


DOWNLOADS & FIRE DOCUMENTS

Document TypeMaterial Data Sheet (Graphite)

For more fire certificates, data sheets or product brochures please email us on info@FireEssentials.co.uk or call us on 01305 457703.

If you have any questions about this product or it's suitability to your specific fire door requirements, we would always recommend that you contact your fire officer or Responsible Person(s) etc.. BEFORE purchasing or, contact a member of our team and we would be happy to help.
